Ruland Thin Line Shaft Collars Offer Increased Holding Power

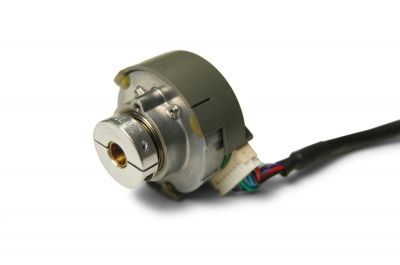

Ruland recently designed thin line shaft collars with a narrow profile and reduced weight to meet the requirements of encoder applications in a standard product line.

Thin line shaft collars are meant to offer encoder manufacturers greater design flexibility than traditional shaft collars. Each bore size has different screw sizes to choose from, allowing the user to select the proper amount of holding power for the application. Additionally, every bore size is available in multiple width and outer diameter configurations that are designed to fit the profile of hollow shaft encoders.

Clamp style thin line shaft collars from Ruland have high holding power, do not mar the shaft, and are easy to install. They have tightly controlled face to bore perpendicularity (TIR of .002" or 0.05 mm) for proper alignment of the mated component. Clamp style shaft collars distribute compressive forces evenly around the shaft. Two-piece thin line shaft collars have opposing screws for balancing and better performance in high speed applications. They offer increased holding power, in-place installation and disassembly, and are mated throughout the manufacturing process for proper fit and alignment.

Thin line shaft collars are available in bore sizes ranging from 1/8" (3 mm) to 1-1/2" (35 mm). They are manufactured from bar stock in 2024 aluminum for lightweight and low inertia and 303 stainless steel for higher corrosion resistance. Hardware exceeds DIN 912 12.9 standards for maximum torque capabilities and holding power. Stainless steel hardware undergoes an in-house treatment process to prevent galling.

Thin line shaft collars are part of Ruland's encoder product line that also includes beam, oldham and bellows couplings. All products are carefully manufactured in Ruland's factory in Marlborough, MA. 3D CAD files, full product specifications and additional technical information are available at www.ruland.com.
