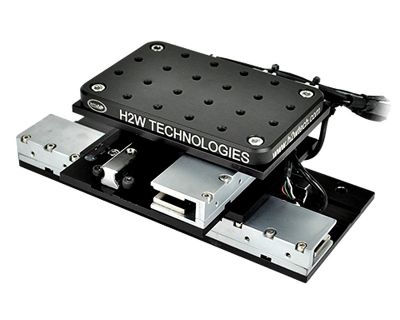

The SRS-004-006/004-003-01-XY is a low profile XY single rail positioning stage that uses brushless linear motors to generate a continuous/peak force of 6.2 lbs [27.8 N]/18.7 lbs [83.3 N] (bottom axis), 3.1 lbs [13.8 N]/9.4 lbs [41.8 N] (top axis), with a total stroke length of 4.3 in [109 mm] (bottom axis), 4.3 in [109 mm] (top axis). The top axis is able to directly mount to the moving bottom axis motor. This helps reduce the overall height and moving mass of the system.

A low-profile system able to make quick moves in both the X and Y axes provided the essential solution for an automated assembly application. The brushless linear motor was selected for both its ability to achieve high speeds as well as fit into a tight envelope. The optional breadboard provided the customer with the mounting flexibility to integrate a number of different tools into the same positioning stage.

The non-contact 1.0-micron resolution encoder allows for precise positioning and rigid recirculating ball linear bearing provides for smooth guidance and travel. It has end-of-travel bumper stops and a home positioning sensor, end-of-travel sensors, and custom mounting holes on the moving table are available upon request.

Features include a compact size, low profile, two-axis motion control and an optional optical breadboard plate.
